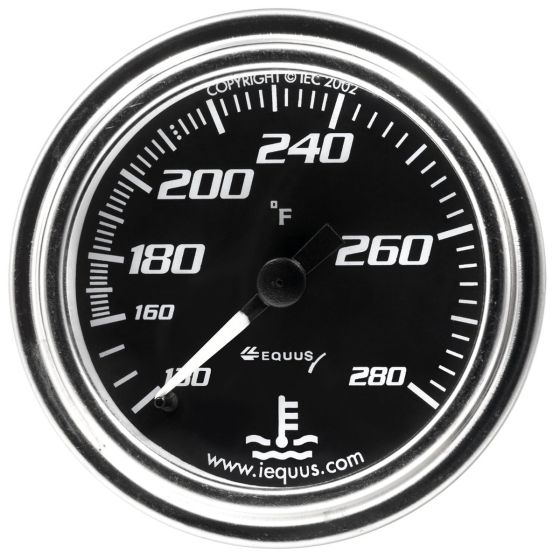

2" Chrome Mechanical Water Temperature Gauge

E7241
$61.63
Ships in 2-4 Days
The attractive, durable, and affordable Equus 7000 Classic  2 in. mechanical temperature gauge features elegant styling, superior 270 degree sweep for enhanced resolution, black dial, chrome bezel, and backlit illumination for efficiently monitoring engine coolant / water temperature. Installation hardware included. Additional adapters sold separately.
  • 130° to 280° F
  • Back-Lit™ illumination for night use. Includes red and green bulb covers.
  • 270 degree analog needle sweep provides improved visibility and resolution.
  • Rear twist-on ring mount design makes mounting simple
  • Includes installation adapters for 1/2 in. and 3/8 in. NPT
  • 144 in. capillary tubing

ATTRIBUTES:

Type: Water Temp
Analog or Digital: Analog
Gauge Size (in.): 2.063
Gauge Depth (in.): 2.75
Range: 130 - 280 Deg F
Scale: Deg F
Sweep: Full
Electrical or Mechanical: Mechanical
Mounting Hardware: Yes
Lighting Type: White Incandescent
Manual: Download Manual

FREE SHIPPING ON ORDERS OVER $99

HASSLE FREE RETURNS

7000 SERIES BENEFITS

EQUUS® REPLACEMENT TACH & GAUGES

This attractive, durable and affordable line features a selection of elegantly designed 2” stainless / chrome bezel gauges with 90º (electrical) and 270º (mechanical) sweeps, as well as matching tachometers for the automotive aftermarket buyer. The series' increased performance and accuracy is achieved by its original equipment-type Electric Aircore meter movement or solid brass mechanical Bourdon Tube meter movement. All feature Back-Lit™ illumination and include easy-to-read mounting instructions in English, French and Spanish.

The series' increased performance and accuracy is achieved by its original equipment-type Electric Aircore meter movement or solid brass mechanical Bourdon Tube meter movement. All feature Back-Lit™ illumination and include easy-to-read mounting instructions in English, French and Spanish.

TWIST ON RING MOUNT

All of our single and triple gauge kits include a rear ring mount attachment to make installation very simple.

FAQ

What type of wire is recommend for the installation?

We recommend to use 18-20 AWG stranded copper wire.

What would cause my gauge to peg past 280?

A bad ground connection can cause a gauge to peg. We recommend to verify that there is a good clean ground. You can attempt to ground the gauge directly to the negative side of the battery to determine if the ground is faulty. If you use Teflon tape on the sender then you may also require an additional ground from the sender to the chassis.

Can I use a different sender than the one included with the gauge?

Our gauges are designed to work with the sending unit that is included in the packaging. Other sending units may have different specifications and are not guaranteed to work.
